| Modellkennung LL | Artikel-Nr. LL | Leistungserklärung LL |
|---|---|---|

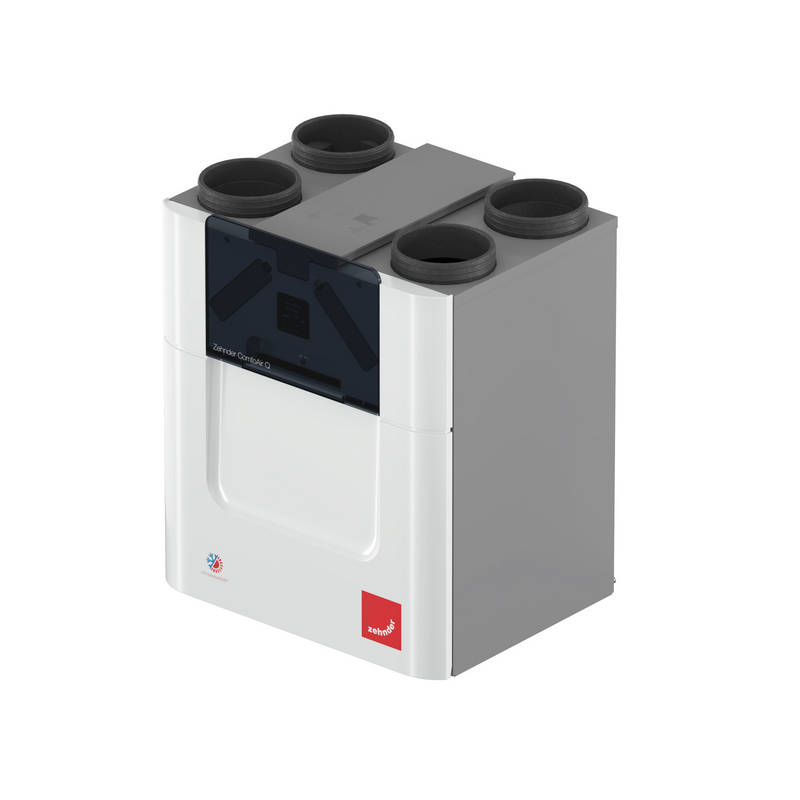

| CAQ350-R-PRH-STT-BE - ComfoAir Q350 Premium - Ventilatie-unit met elektrische voorverwarmer volledige connectiviteit | 471502001 | 1603032Q35010.pdf(69 KB) |
| Steuerung LL | Energieeffizienzklasse LL | Energieeffizienz-Label LL |
| Centrale vraagsturing | EU-label_CAQ350_471502001_A+.pdf(97 KB) | |
| Handmatige bediening | EU-label_CAQ350_471502001_A.pdf(95 KB) | |
| Zonering | EU-label_CAQ350_471502001_A+.pdf(97 KB) | |
| Kloksturing | EU-label_CAQ350_471502001_A.pdf(95 KB) |
| Typeplaat | Waarde |
|---|---|
| Bestelnummer | 471502001 |
| GTIN | 8717573874229 |
| Production model | COMFOAIR Q350 B R VV PREMIUM |
| Air flow rate | 400 m³/h |
| Amperage | 7.6 A |
| Voedingsspanning | 230 V |
| Frequentie | 50 Hz |
| Geluidsniveau | 42 |
| Energie klasse I | A |
| Energie klasse II | A+ |
| Ondersteunt protocol voor Modbus | |
| Spanning | 230 V |
| Elektrische aansluiting | Aansluitkabel met contactstop met aardpen |
| Links/rechts oriëntatie omkeerbaar | |
| Materiaal behuizing | Staal |
| Kwaliteitsklasse materiaal behuizing | Overig |
| Met constante druk regeling | |
| Nom. kanaaldiameter | 160-190 mm |
| Geschikt voor wandmontage | |
| Max. luchthoeveelheid bij 100 Pa | 350 m³/h |
| Met thermische beveiliging | |
| Afvoerfilter volgens ISO 16890-1:2016 | ISO Coarse |
| Toevoerfilter volgens ISO 16890-1:2016 | ISO ePM1 |
| Breedte | 725 mm |
| Met constant volume regeling | |
| Frequentie | 50 Hz |
| Type vorstbeveiliging | Verwarmingselement |
| Beschermingsgraad (IP) | IP40 |
| Aansluitingen woningzijdig | Steek-/kanaaleind |
| Opgenomen vermogen bij max. luchthoeveelheid bij 100 Pa | 0.101 kW |
| Aansluitingen buitenluchtzijdig | Steek-/kanaaleind |
| Geschikt voor extra VOC-sensor | |
| Met bypass | |
| Uitvoering schakelaar | Overig |
| Met verwarmingselement | |
| Rendement afvoerfilter volgens ISO 16890-1:2016 | 65 % |
| Met bedrade bediening | |
| Aantal fasen | 1 |
| Geschikt voor (extra) (RV) vochtsensor | |
| Elektrische aansluiting | Aansluitkabel met contactstop met aardpen |
| Met interne (RV) vochtsensor | |
| Gewicht | 52 |
| Geschikt voor zoneregelaar | |
| Hoogte | 850 mm |
| Met zoneregelaar | |
| Type toerenregeling | Other |
| Geschikt voor bedrade bediening | |
| Thermisch rendement bij 70% luchthoeveelheid bij 50 Pa | 93 % |
| Spanning | 230 V |
| Type motor | Electronically commutated (EC) |
| Vloermontage | |
| Energie-efficiëntieklasse | A+ |
| Opgenomen vermogen conform EPN norm | 0.086 kW |
| Spanning | 230 V |
| Max. luchthoeveelheid bij 50 Pa | 245 m³/h |
| Geluidsdrukniveau | 42 dB(A) |
| Rendement toevoerfilter volgens ISO 16890-1:2016 | 55 % |
| Met digitaal display | |
| Geschikt voor (extra) kooldioxide (CO2) sensor | |
| Nom. kanaaldiameter | 160-190 mm |
| Type motor | EC (elektronische commutatie) |
| Diepte | 570 mm |
| Hoogte | 850 mm |
| Diepte | 570 mm |
| Geschikt voor aansluiting cv-ketel | |
| Gewicht | 52 |
| Dakaansluiting bovenkant | |
| Frequentie | 50 Hz |
| Dakaansluiting zijkant | |
| Materiaal behuizing | Steel coated |
| Afzekering apparaat | 10 A |
| Breedte | 725 mm |
| Warmteterugwinning via | Kruistegenstroominrichting |
| Met interne kooldioxide (CO2) sensor | |
| Materiaal warmtewisselaar | Overig |
| Max. luchthoeveelheid bij 200 Pa | 350 m³/h |
| Energie-efficiëntieklasse (1253/2014/EU) | A+ |
| Elektrische aansluiting | Connecting cord with plug with protective contact |
| Max. luchthoeveelheid bij 150 Pa | 350 m³/h |
| Vermogen elektrisch verwarmingselement | 0-1740 W |
| Woningaansluiting zijkant links | |
| Met sensor voor vluchtige organische stoffen (VOC) | |
| Woningaansluiting onderzijde | |
| Thermisch rendement conform EPN norm | 93 % |
| Woningaansluiting bovenkant | |
| Nom. kanaaldiameter | 160-190 mm |
| Woningaansluiting zijkant rechts | |
| Bediening via app | |
| Geschikt voor draadloze afstandsbediening | |
| Afzekering apparaat | 10 A |
| Met externe (RV) vochtsensor | |
| Cos. phi conform EPN norm | 0.42 |
| Met draadloze afstandsbediening | |
| Geschikt voor plafondmontage |
