Artikelnummer 458306610

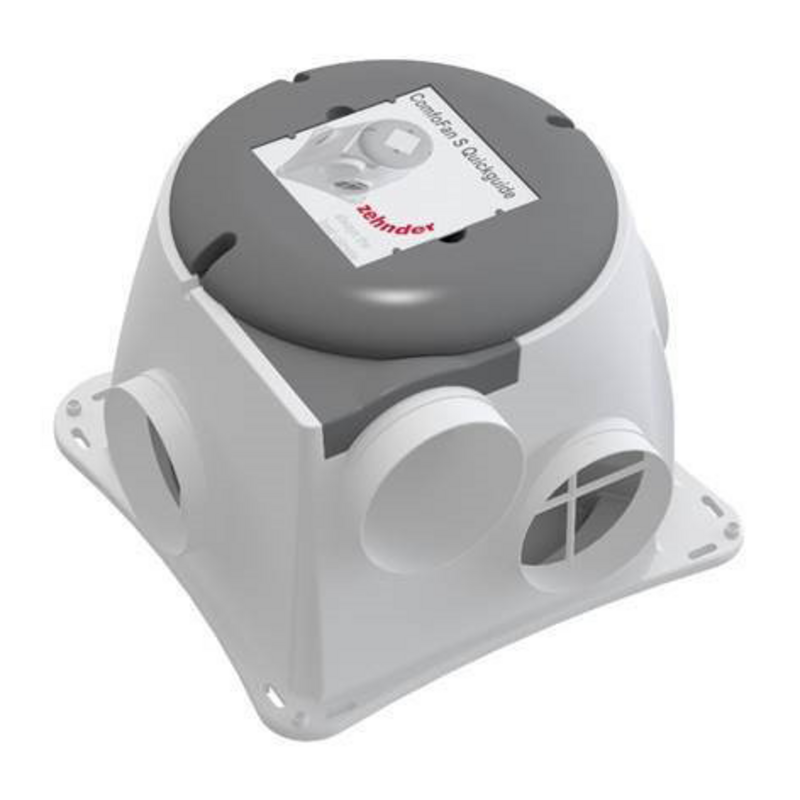

ComfoFan Silent 425 R Hygro – Centrale luchtafvoerbox DN125/160 - randaarde en 5-aderige voedingskabel

    Artikel specificaties

    TypeplaatWaarde
    Bestelnummer 458306610
    GTIN 8717573037228
    Production model COMFOFAN SILENT 425 C7+RF EXP
    Air flow rate 500 m³/h
    Voedingsspanning 230 V
    Frequentie 50 Hz
    Geluidsniveau 52
    Energie klasse I B
    Energie klasse II D
    Nom. kanaaldiameter 125 mm
    Opgenomen vermogen bij max. luchthoeveelheid bij 100 Pa 0.065 kW
    Connection Insert end
    Detects volatile organic compounds
    Depth 386 mm
    Operation by app
    Materiaal behuizing Plastic
    With external humidity (RH) sensor
    Suitable for requirement-controlled ventilation
    Nominal duct diameter 125 mm
    Type motor Electronically commutated (EC)
    Vertical mounting
    Geschikt voor plafondmontage
    With zone controller
    Max. nom. stroom 0.46 A
    Max. air volume at 200 Pa 425 m³/h
    Type toerenregeling Traploos
    Elektrische aansluiting Aansluitkabel met eurostekker
    Sensorgestuurde luchtstroom
    Suitable for (extra) pressure sensor
    Geschikt voor wandmontage
    Type toerenregeling Continuously variable
    Max. luchthoeveelheid bij 100 Pa 475 m³/h
    Extra electrical connection included separately Other
    Energie-efficiëntieklasse B
    Rear connection
    Stuursignaal 0-10V
    Suitable for (extra) carbon dioxide (CO2) sensor
    Met bedrade bediening
    Suitable for suspended mounting
    Geschikt voor (extra) druksensor
    Width 386 mm
    Geschikt voor (extra) (RV) vochtsensor
    Frequentie voedingsspanning 50-60 Hz
    Met externe (RV) vochtsensor
    With pressure sensor
    Met interne (RV) vochtsensor
    Electrical connection Connection cable with Europlug
    Geschikt voor zoneregelaar
    Stuursignaal 0 - 10 V
    Met zoneregelaar
    With wired control unit
    Geschikt voor bedrade bediening
    Max. air volume at 150 Pa 460 m³/h
    Nom. kanaaldiameter 125 mm
    Geschikt voor bewegingssensor
    Met externe kooldioxide (CO2) sensor
    Geluidsvermogensniveau 52 dB(A)
    Max. luchthoeveelheid bij 50 Pa 500 m³/h
    Max. nom. stroom 0.46 A
    Montage verticaal
    Horizontal mounting
    Geschikt voor (extra) kooldioxide (CO2) sensor
    Suitable for (extra) humidity (RH) sensor
    Met druksensor
    Suitable for wall mounting
    Geschikt voor vraaggestuurde ventilatie
    Sensor controlled air flow
    Aantal aanzuigaansluitingen 4
    Type of speed control Continuously variable
    Achteraansluiting
    Height 281 mm
    Elektrische aansluiting Kabel
    Number of suction connections 4
    Type motor EC (elektronische commutatie)
    Suitable for floor mounting
    Met interne kooldioxide (CO2) sensor
    Breedte 386 mm
    Max. luchthoeveelheid bij 200 Pa 425 m³/h
    With external carbon dioxide (CO2) sensor
    Max. luchthoeveelheid bij 150 Pa 460 m³/h
    Suitable for wireless remote control
    Bediening via app
    Suitable for floor mounting
    Geschikt voor pendelophanging
    Suitable for ceiling mounting
    Geschikt voor draadloze afstandsbediening
    Aansluiting Insert end
    Breedte 386 mm
    Elektrische aansluiting Connecting cord with plug with protective contact
    Geschikt voor bodemmontage
    Housing material Plastic
    Diepte 386 mm
    Supply voltage 220-230 V
    Aansluiting Insteekuiteinde
    Max. air volume at 50 Pa 500 m³/h
    Hoogte 281 mm
    With wireless remote control
    Detecteert vluchtige organische stoffen
    Type of motor Electronically commutated (EC)
    Montage horizontaal
    Energie-efficiëntieklasse B
    Met bewegingssensor
    Voedingsspanning 220-230 V
    Materiaal behuizing Kunststof
    Suitable for wired control unit
    Met draadloze afstandsbediening
    Suitable for zone controller
    Frequency supply voltage 50-60 Hz
    Max. air volume at 100 Pa 475 m³/h
    Energy efficiency class B
    With internal carbon dioxide (CO2) sensor
    Diepte 386 mm
    Suitable for movement sensor
    Hoogte 281 mm
    Sound performance level 52 dB(A)
    Max. nominal current 0.46 A
    Power consumption at max. air volume at 100 Pa 0.054 kW
    With movement sensor
    Frequentie voedingsspanning 50-60 Hz
    Control signal 0 - 10 V
    Vloermontage
    With internal humidity (RH) sensor
    Voedingsspanning 220-230 V
