ComfoAir Q600, comfoairq600, ST, CAQ600ST, CAST
Artikelnummer 471502005

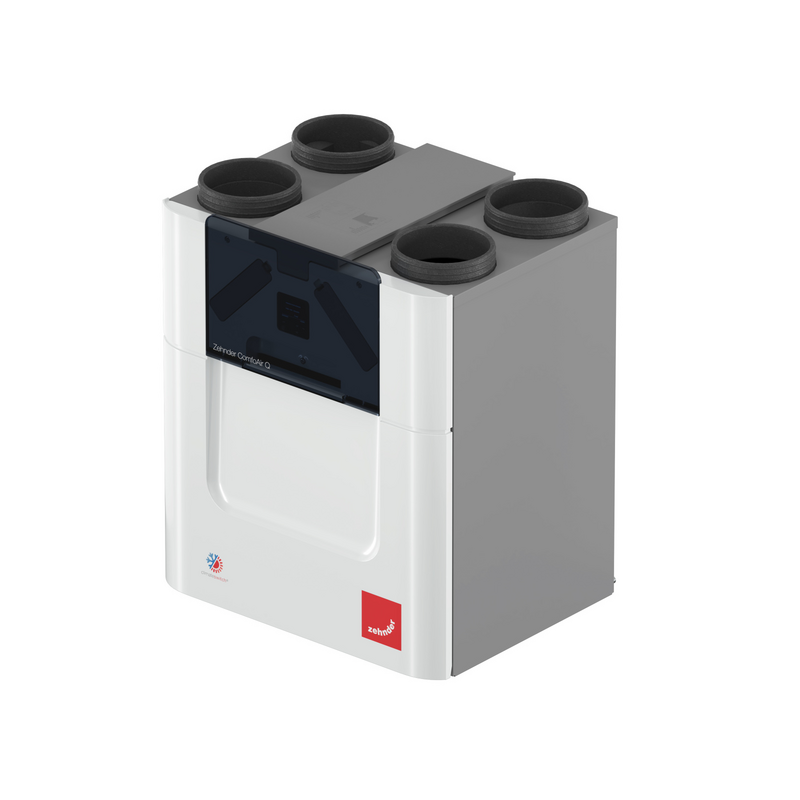

ComfoAir Q600 Premium - Ventilatie-unit met elektrische voorverwarmer volledige connectiviteit

  • Energiebesparing
  • Optimaal wooncomfort
  • Stille werking

Verklaring

Modellkennung LLArtikel-Nr. LLLeistungserklärung LL
CAQ600-R-PRH-STT-BE - ComfoAir Q600 Premium - Ventilatie-unit met elektrische voorverwarmer volledige connectiviteit471502005 1603032Q60010.pdf(70 KB)

Steuerung LLEnergieeffizienzklasse LLEnergieeffizienz-Label LL
Centrale vraagsturing EU-label_CAQ600_471502005_A.pdf(95 KB)
Handmatige bediening EU-label_CAQ600_471502005_A.pdf(95 KB)
Zonering EU-label_CAQ600_471502005_A+.pdf(97 KB)
Kloksturing EU-label_CAQ600_471502005_A.pdf(95 KB)

Artikel specificaties

TypeplaatWaarde
Bestelnummer 471502005
GTIN 8717573874274
Production model COMFOAIR Q600 B R VV PREMIUM
Air flow rate 600 m³/h
Amperage 10.3 A
Voedingsspanning 230 V
Frequentie 50 Hz
Geluidsniveau 51
Energie klasse I A
Energie klasse II A+
Afzekering apparaat 16 A
Type of frost protection Heating element
Diepte 570 mm
Width 725 mm
With zone controller
Power consumption at max. air volume at 100 Pa 0.258 kW
Toevoerfilter volgens ISO 16890-1:2016 ISO ePM1
Met constant volume regeling
Type vorstbeveiliging Verwarmingselement
Max. luchthoeveelheid bij 100 Pa 600 m³/h
Met constante druk regeling
Geschikt voor wandmontage
Met thermische beveiliging
Afvoerfilter volgens ISO 16890-1:2016 ISO Coarse
Operation by app
Aansluitingen woningzijdig Steek-/kanaaleind
Energie-efficiëntieklasse (1253/2014/EU) A+
Aansluitingen buitenluchtzijdig Steek-/kanaaleind
Opgenomen vermogen conform EPN norm 0.174 kW
Met bypass
Residential connection, right side
Met verwarmingselement
Suitable for central heating boiler connection
Met bedrade bediening
Suitable for zone controller
Geschikt voor (extra) (RV) vochtsensor
Voltage 230 V
Met interne (RV) vochtsensor
Frequentie 50 Hz
Geschikt voor zoneregelaar
Thermal efficiency at 70 % air volume at 50 Pa 90 %
Met zoneregelaar
Links/rechts oriëntatie omkeerbaar
Geschikt voor bedrade bediening
With volatile organic compound (VOC) sensor
Geschikt voor extra VOC-sensor
Elektrische aansluiting Aansluitkabel met contactstop met aardpen
Vloermontage
Residential connection, underside
Roof connection, side
Housing material Steel
Max. luchthoeveelheid bij 50 Pa 420 m³/h
Electrical connection Connecting cable with plug with protective contact
Rendement toevoerfilter volgens ISO 16890-1:2016 55 %
With wired control unit
Connections outdoor air side Insert-/duct end
Geschikt voor (extra) kooldioxide (CO2) sensor
Max. air volume at 100 Pa 600 m³/h
With internal carbon dioxide (CO2) sensor
Gewicht 48
Materiaal behuizing Steel coated
Weight 48
Cos. phi conform EPN norm 0.54
Warmteterugwinning via Kruistegenstroominrichting
Geschikt voor aansluiting cv-ketel
Materiaal warmtewisselaar Overig
Dakaansluiting bovenkant
Elektrische aansluiting Connecting cord with plug with protective contact
Dakaansluiting zijkant
Kwaliteitsklasse materiaal behuizing Overig
Energie-efficiëntieklasse A+
Fuse size of the device 16 A
Material heat exchanger Other
Met interne kooldioxide (CO2) sensor
Spanning 230 V
Max. luchthoeveelheid bij 200 Pa 600 m³/h
Residential connection, left side
Residential connection, top
Max. luchthoeveelheid bij 150 Pa 600 m³/h
Roof connection, top
Woningaansluiting zijkant links
Suitable for ceiling mounting
Woningaansluiting onderzijde
Number of phases 1
Woningaansluiting bovenkant
With thermal overload protection
Woningaansluiting zijkant rechts
Max. air volume at 50 Pa 420 m³/h
Geschikt voor draadloze afstandsbediening
Type of motor Electronically commutated (EC)
Suitable for wired control unit
Met digitaal display
Supporting protocol for Modbus
Rendement afvoerfilter volgens ISO 16890-1:2016 65 %
With heating element
With constant volume flow control
Ondersteunt protocol voor Modbus
Connections residential side Insert-/duct end
With constant pressure control
Aantal fasen 1
Max. air volume at 150 Pa 600 m³/h
Max. air volume at 200 Pa 600 m³/h
Spanning 230 V
Hoogte 850 mm
Nom. kanaaldiameter 180-200 mm
Nom. kanaaldiameter 180-200 mm
Elektrische aansluiting Aansluitkabel met contactstop met aardpen
Type toerenregeling Other
Type motor EC (elektronische commutatie)
Beschermingsgraad (IP) IP40
Breedte 725 mm
Thermisch rendement bij 70% luchthoeveelheid bij 50 Pa 90 %
Diepte 570 mm
Breedte 725 mm
Hoogte 850 mm
Housing material quality Other
Frequentie 50 Hz
Gewicht 48
With bypass
Materiaal behuizing Staal
With internal humidity (RH) sensor
Spanning 230 V
Suitable for (extra) humidity (RH) sensor
Left/right orientation reversible
Suitable for wall mounting
Opgenomen vermogen bij max. luchthoeveelheid bij 100 Pa 0.258 kW
Efficiency exhaust filter according to ISO 16890-1:2016 65 %
Type motor Electronically commutated (EC)
Nominal duct diameter 180-200 mm
Heat recovery by Cross-counter-flow unit
Exhaust filter according to ISO 16890-1:2016 ISO Coarse
Suitable for extra VOC sensor
Supply filter according to ISO 16890-1:2016 ISO ePM1
Energy efficiency class according to 1253/2014/EU A+
Height 850 mm
Vermogen elektrisch verwarmingselement 0-2370 W
Suitable for floor mounting
Met sensor voor vluchtige organische stoffen (VOC)
Depth 570 mm
Degree of protection (IP) IP40
Efficiency supply filter according to ISO 16890-1:2016 55 %
Thermisch rendement conform EPN norm 90 %
Suitable for (extra) carbon dioxide (CO2) sensor
Power electric heating element 0-2370 W
Frequency 50 Hz
Nom. kanaaldiameter 180-200 mm
Suitable for wireless remote control
Bediening via app
With digital display
Afzekering apparaat 16 A
Geschikt voor plafondmontage
