990322025, joining piece, DN 160, DN 125,TRA-DN160/CK300, SAP Code:18501393, OnFloor (flat oval pipe)
N° d’article 990322025

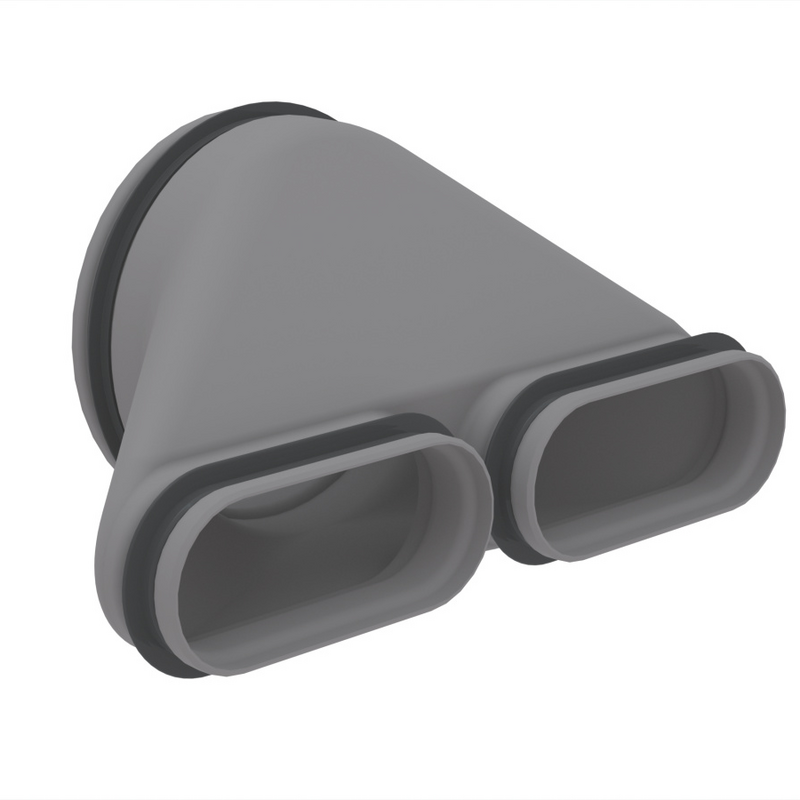

ComfoFit CK – transition droite DN160

    Spécifications de l'article

    ÉtiquetteValeur
    Code produit 990322025
    GTIN 7640129217649
    Nature du matériau du conduit PE
    Gaine d'épaisseur de paroi 2.5
    Anti-bacterial model
    Pressurisé
    Finition antistatique
    Réduction de tuyau
    Réduction de raccord
    Mur intérieur perforé
    Avec pince à pousser
    Avec profil à pousser
    Incorporable dans le béton
    Avec joint prémonté
    Air tightness class according to EN 1751 None
    Outside colour Grey
    Connection 2 Insert end
    Connection 1 Insert end
    Design form Eccentric in height
    Model Uninsulated duct
    Nominal duct width connection 1 326
    Nominal duct height connection 1 70
    Length of connection 1 35
    Length of connection 2 40
    Working length connection 1 37
    Working length connection 2 35
    Nominal duct diameter, connection 1 160
    Surface protection internal Untreated
    Outer surface protection Untreated
    Production method Other
    Connection type connection 2 Round air duct
    Connection type connection 1 Oval air duct
    Length 319
    Material duct Plastic
    Matériau du conduit Plastique
    longueur 150
    Finition raccordement 1 Gaine de ventilation ronde
    Finition raccordement 2 Gaine de ventilation ovale
    Mode de réalisation Excentrique dans la hauteur
    Classe d'étanchéité à l'air selon EN 1751 Sans
    Couleur extérieure Gris
    longueur utile raccordement 1 37
    longueur raccordement 2 37
    longueur raccordement 1 48
    longueur utile raccordement 2 35
    Protection de surface externe Non traité
    Type de production Sans soudure
    Modèle Conduit non isolé
    Raccordement 2 Embout d'insertion
    Raccordement 1 Embout d'insertion
    Protection de surface interne Non traité
    diamètre nominal conduite raccordement 1 160
    hauteur nom. de conduit raccordement 2 78
    largeur nom. de conduit raccordement 1 326
    largeur nom. de conduit raccordement 2 158
    hauteur nom. de conduit raccordement 1 70
    diamètre de canal équivalent 1 160
    Pressed
    Equivalent duct diameter, connection 1 160
    Wall thickness duct 2.5
    Material quality duct Polyethylene (PE)
    Connection type connection 1 Round air duct
    Connection type connection 2 Oval air duct
    Outer surface protection Untreated
    Inner surface protection Untreated
    Fitting reducing piece
    Design form Eccentric in height
    With pre-mounted seal
    With push-on profile
    With push-on clamp
    Nominal duct diameter, connection 1 160
    Nominal duct height connection 2 78
    Nominal duct width connection 2 158
    Material duct Plastic
    Perforated inner wall
    Model Uninsulated duct
    Antistatic version
    Connection 2 Insert end
    Connection 1 Insert end
    Outside colour Grey
    Length 150
    Duct reducing piece
    Length of connection 2 37
    Length of connection 1 48
    Production method Seamless
    Embeddable in concrete
    Diamètre de canal équivalent 1 160
    Longueur raccordement 2 37
    Longueur raccordement 1 48
    Diamètre nominal du canal raccordement 1 160
    Hauteur nominale du canal raccordement 2 78
    Largeur nominale du canal raccordement 2 158
